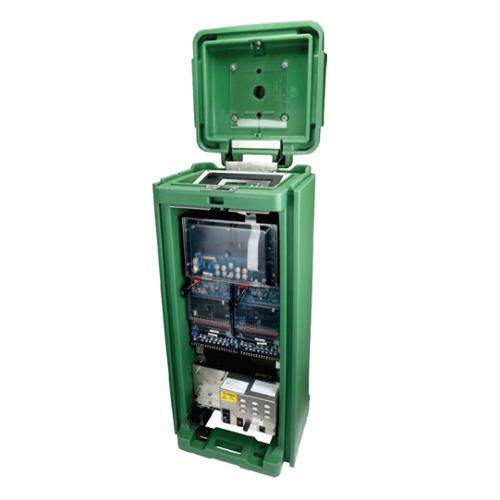

The OSMAC G3 Satellite is a flexible, wireless irrigation control solution ideal for retrofits and system upgrades. Designed for commercial and municipal applications, it eliminates the need for communication wires, mounts easily to existing pedestal patterns, and excels in high-lightning areas thanks to enhanced surge protection.
Key Features:
- Wireless communication ideal for retrofit projects—no communication wires required
- Mounts to many existing pedestal bolt patterns for easy installation
- Enhanced surge protection lowers operating costs in lightning-prone areas
- Stand-alone programming with manual and multi-station manual operation
- Page log stores last 100 commands for local troubleshooting
- Received Signal Strength Indication (RSSI) aids in setup and diagnostics
- Internal antenna design reduces cabinet size profile
Construction & Durability:
- Plastic cabinet available in multiple color options: Green, Tree Bark, Desert Sand
- Internal antenna reduces exposure and improves cabinet durability
- Patented Hot Post enhances reliability per eight-station module
Performance & Functionality:
- Operates as stand-alone or integrates with paging-based systems
- Improved radio performance for challenging environmental conditions
- LED indicators confirm 24V, 9V, and 5V power to boards
- Station output LEDs simplify field diagnostics
Ease of Installation & Use:
- Compatible with existing E-OSMAC systems via upgrade kit
- Tool-free installation with included mounting hardware (in upgrade kits)
- Compact design fits in tight or retrofit areas
Technical Specifications:
- Operating Voltage: 120/240 VAC, 50/60 Hz
- Current Draw (120V): 0.20A (no load), 0.96A (max load)
- Current Draw (240V): 0.10A (no load), 0.47A (max load)
- Available Station Counts: 16, 24, 32, 40, 48, 56, 64
- Cabinet Dimensions: 17" W x 40" H x 16" D
- Cabinet Colors: Plastic Green, Tree Bark, Desert Sand
- Surge Protection: Optional premium surge model available
Installation & Application:
- Recommended Uses: Commercial landscapes, municipal irrigation, parks, retrofit projects
- Installation Method: Mounts to pedestal, available as full satellite or upgrade kit
- Ideal for high lightning regions and wireless-required zones
Compatibility & Optional Accessories:
- Compatible with existing E-OSMAC systems
- Upgrade kit includes OSMAC G3 faceplate, interface cable, and hardware
- Optional surge protection module for enhanced electrical defense
