The Lynx Smart Satellite is a high-performance irrigation controller designed to enhance reliability, communication, and control for large-scale turf irrigation systems. Compatible with Toro’s Network VP® and Network 8000® systems, it seamlessly integrates with Lynx Central Control and field sensors, making it ideal for golf courses, municipalities, and commercial landscapes.
Key Features:
- Modular solid-state controller supporting 16–64 stations
- Enhanced wireless communication with integrated digital radio modem

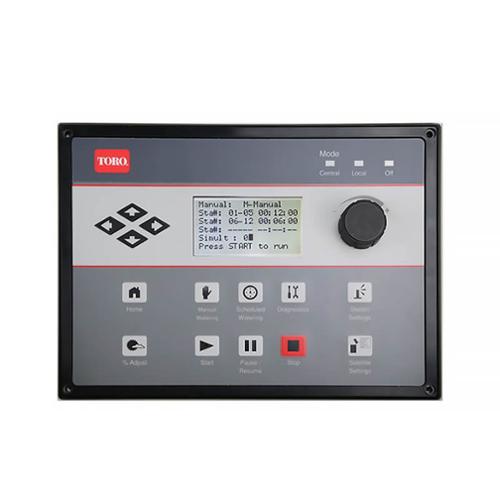

- Intuitive backlit 6-line display with simplified navigation controls
- Manual, semi-automatic, and automatic operation modes
- Supports up to 64 irrigation programs and 32 simultaneous station operations

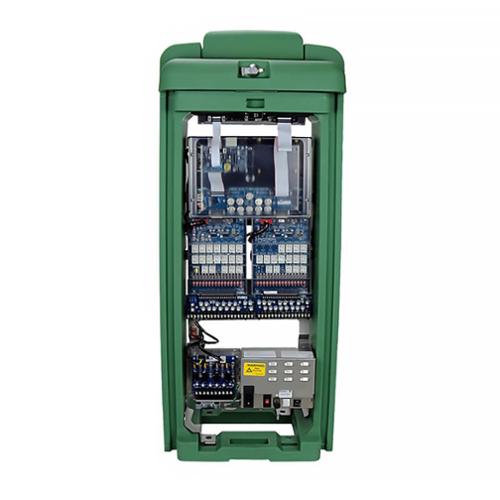

- Corrosion-resistant construction with vented, clear circuit covers
- Optional sensor input kit for pressure, flow, rain, status, and temperature inputs
- Backward compatible with Network VP and Network 8000 systems
Construction & Durability:

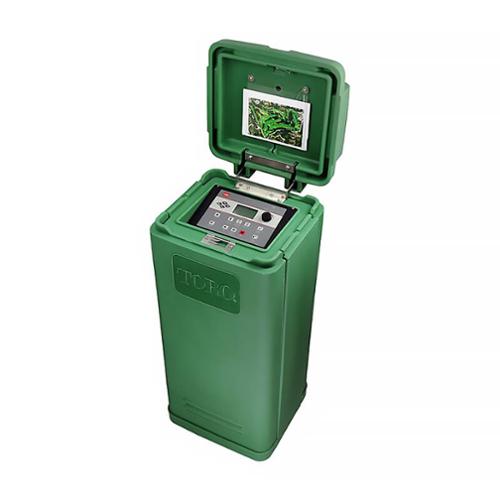

- Weatherproof bi-wall plastic pedestal enclosure with locking access door
- Stainless steel and plated metal parts for added corrosion resistance
- Shielded connectors and conformal-coated electronics for environmental protection
- LED indicators for diagnostics and operating status
Performance & Functionality:
- 16–64 stations in 16-station increments
- Run times from 1 second to 23 hours, 59 minutes
- Up to 64 programs with 24 start times each, 3 fixed repeats per program
- Station, program, and satellite percentage adjustment (0%–900%)
- Multi-manual operation and group routines for efficient scheduling
- Current sensing with programmable over- and under-current alarms
- Real-time clock backed by high-energy lithium battery (90-day retention)
- Nonvolatile memory saves data for 10 years without power
Ease of Installation & Use:
- Familiar user interface with arrow buttons and selector knob
- High-contrast 6-line LCD screen for intuitive programming
- Faceplate access for diagnostics, radio settings, and real-time voltage display
- Does not require armored or looping communication cables
Technical Specifications:
- Operating Modes: Central, local, off
- Communication: Wireline, radio, or hybrid
- Power Input: 108–132 VAC @ 60 Hz; 216–264 VAC @ 50 Hz
- Power Output: 24 VAC, up to 3.2 amps (77 VA)
- Simultaneous Station Capacity: Up to 32 stations
- Operating Temp Range: -15°F to 140°F
- Storage Temp Range: -22°F to 149°F
- Humidity: 0%–95% RH (non-condensing)
- Cabinet Dimensions: 17”W x 40”H x 16”D
- UL Listed: Yes
- Languages Supported: English, Spanish, French, Italian, Chinese, Korean, Japanese
Installation & Application:
- Recommended Uses: Golf courses, municipal turf areas, parks, and sports complexes
- Installation Method: Pedestal-mounted on a concrete pad
- Compatible Systems: Toro Lynx, SitePro, Network VP, Network 8000
Compatibility & Optional Accessories:
- Compatible with Toro Network VP, Network 8000, and Lynx Central Control
- Optional Sensor Input Kit: supports pressure, flow, temperature, rain, and status sensors
- Optional Surge Protection Kit for enhanced output/input protection
