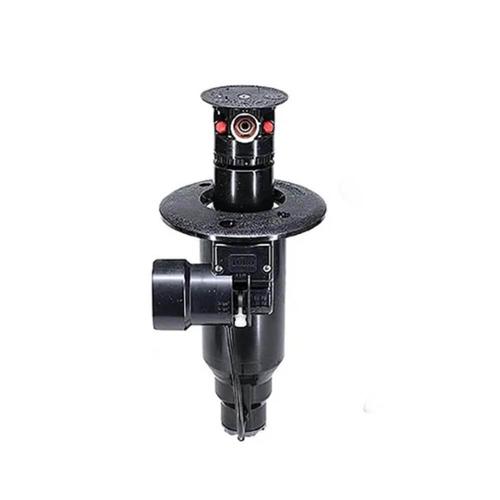

The Toro FLEX800 34/54 Series sprinkler offers superior water distribution for golf courses with dual trajectory nozzle technology and constant velocity full-circle drive. Designed for precise performance, this durable sprinkler maximizes efficiency under demanding conditions like wind and elevation changes.
Key Features:
- Full-circle arc with selectable 15° or 25° nozzle trajectory
- Radius: 52'–99' with flow rates from 13.2–61.8 GPM
- Selectable pressure regulation at 50, 65, 80, or 100 PSI
- Constant velocity drive for uniform coverage
- High-strength plastic and stainless-steel construction
- Indestructible stainless steel valve seat and communication tube
- Serviceable internal components and top-access rock screen
- Manual ON-OFF-AUTO control on electric models
- Industry’s largest color-coded, debris-tolerant nozzle selection
- Available with 5 electric and 2 hydraulic activation options
Construction & Durability:
- High-strength engineering plastic and stainless steel parts
- Debris-tolerant, color-coded nozzles threaded from the front
- All internal parts accessible from the top for easy maintenance
- Stainless steel valve seat molded into body for enhanced durability
Performance & Functionality:
- Arc Type: Full Circle (360°)
- Trajectory Options: 15° low angle or 25° standard
- Radius: 52'–99'
- Flow Rate: 13.2–61.8 GPM
- Pressure Range: 40–150 PSI; recommended 65–100 PSI
- Precipitation Rate: 0.38"–0.77"/hr
- Selectable/Lockable Pressure Regulation: 50, 65, 80, 100 PSI
Ease of Installation & Use:
- Five electric activation options including SPIKEGUARD and GDC solenoids
- Manual control for on-site adjustments (ON/OFF/AUTO)
- Serviceable from the top—no digging required
Technical Specifications:
- Operating Pressure Range: 40–150 PSI
- Recommended Pressure: 65–100 PSI
- Flow Rate: 13.2–61.8 GPM
- Spray Radius: 52'–99'
- Arc: Full Circle (360°)
- Trajectory: 15° or 25° selectable
- Pop-Up Height to Nozzle: 4 3/16"
- Body Height: 11"
- Inlet Size: 1-1/2" NPT, BSP, or ACME
- Activation: Electric (Standard, SPIKEGUARD, GDC) & Hydraulic
- Check Valve: Optional Check-O-Matic up to 37' elevation
Installation & Application:
- Recommended Uses: Golf courses and large turf applications
- Installation Method: Buried in-ground with 1-1/2" threaded inlet
- Soil & Climate Suitability: Performs well in windy environments
Compatibility & Optional Accessories:
- Compatible with Toro’s precision nozzles and back nozzle inserts
