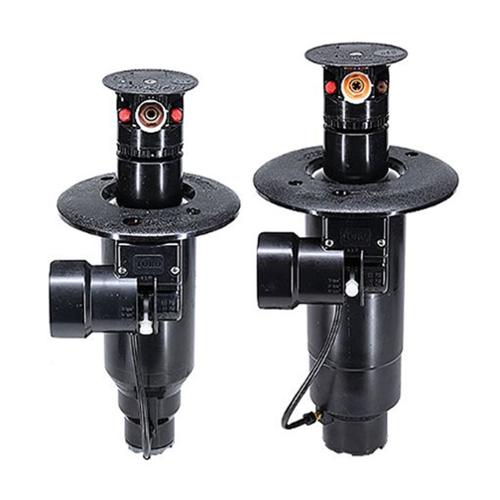

The Toro FLEX800™ 54 Series Golf Rotor delivers precision irrigation with its dual trajectory nozzle and constant velocity drive. Designed for golf course environments, it provides full-circle coverage and consistent water application even in challenging wind conditions. Engineered for durability, it features a stainless steel valve seat, corrosion-resistant components, and debris-tolerant nozzle options for reliable long-term performance.
Key Features:
- Dual trajectory main nozzle (15° & 25°) enhances coverage and wind performance
- Industry’s largest nozzle selection: 9 color-coded main nozzles (radius 52’–99’)
- Constant velocity full-circle drive ensures even water application
- SpikeGuard™ solenoid resists surges up to 20kV for long-lasting reliability
- Stainless steel valve seat and valve communication tube for rugged durability
- Radius reduction screw fine-tunes throw down to 30’
- All internal components accessible from the top for easy servicing
Construction & Durability:
- Body and cap made from UV- and impact-resistant ABS plastic
- Stainless steel spring for positive pop-down retraction
- Two debris filters: rock screen and fine screen to prevent nozzle clogging
- Nickel-plated solenoid option enhances corrosion resistance
Performance & Functionality:
- Operating Pressure Range: 65–100 PSI (Max: 150 PSI, Min: 40 PSI)
- Flow Rate: 13.2–61.8 GPM
- Radius: 52’–99’ depending on nozzle and pressure
- Trajectory: 15° low-angle or 25° standard-angle adjustable setting
- Precipitation Rate: 0.38–0.77"/hr (based on nozzle and pressure)
- Electric Valve-in-Head with manual ON-OFF-AUTO control
- Compatible with Toro swing joints and inner/intermediate nozzle options
Ease of Installation & Use:
- 1-1/2” ACME threaded inlet simplifies connections—no sealant needed
- Serviceable from the top for minimal disruption to turf
- Pop-up riser and nozzle accessible with Toro multi-tool
- Integrated manual selector and pressure regulator on pilot valve
Technical Specifications:
- Inlet Size: 1.5" ACME
- Arc: Full-circle (360°)
- Body Height: 11-3/8"
- Pop-Up Height: 4-3/16"
- Body Flange Diameter: 7-5/8"
- Weight: 3.55 lbs (4.24 lbs with Integrated GDC Module)
- Activation Types: SpikeGuard Solenoid 24 VAC (0.12A inrush, 0.10A holding)
- Optional Solenoids: Nickel-plated, DC Latching, Integrated GDC
- Selectable pressure regulation: 50, 65, 80, or 100 PSI
- Sprinkler flush rate: ? 5 GPM during pop-up and retraction
- UV-Resistant Components: Yes
Installation & Application:
- Recommended Uses: Golf courses (greens, tees, fairways), sports turf
- Installation Method: In-ground installation with Toro swing joints
- Soil & Climate Suitability: Performs in windy conditions and debris-heavy soil
Compatibility & Optional Accessories:
- Compatible with Toro Precision™ nozzles and a full range of back nozzles
- Accepts up to five nozzles including inner and intermediate options
- Optional radius reduction screw for spray tuning
