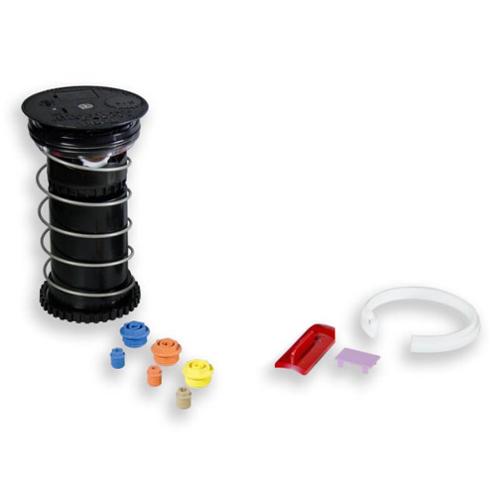

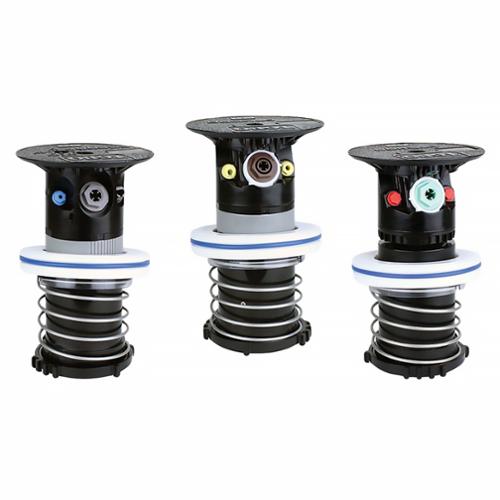

The Toro FLEX800 Series Conversion Assembly offers a cost-effective solution to upgrade existing Toro golf course irrigation systems. Featuring dual selectable trajectories and a broad nozzle selection, it delivers superior distribution uniformity and flexible performance across a range of turf environments.
Key Features:
- Full-circle arc (360°) with selectable 15° or 25° trajectory
- Radius range: 52'–99' for customizable coverage
- Flow rate: 13.2–61.8 GPM for efficient water distribution
- Includes small nozzle set for precise application
- Spike-Guard™ solenoid with 20,000V lightning protection
- True part and full-circle adjustment in one rotor (40°–330°)
- Nozzle adjustment without disassembly for fast serviceability
Construction & Durability:
- Heavy-duty ABS plastic body resists corrosion and UV damage
- Stainless steel riser spring ensures positive retraction
- Durable over-molded urethane riser seal for long-lasting performance
Performance & Functionality:
- Selectable main nozzle discharge angle for maximum uniformity
- Ratcheting riser allows precise positioning without removal
- Radius reduction screw for additional control
- Effluent identifier included for non-potable water applications
- Available with electric valve-in-head activation options
Ease of Installation & Use:
- All nozzles thread in from the front for easy installation

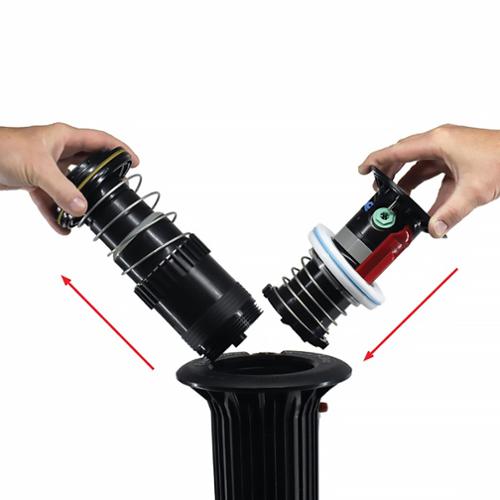

- Riser pull-up feature simplifies maintenance
- Pre-installed coarse rock screen and fine riser screen for debris protection
- Compatible with Toro swing joints for optimal positioning
Technical Specifications:
- Operating Pressure Range: 65–100 PSI (recommended)
- Flow Rate: 13.2–61.8 GPM
- Spray Radius: 52'–99'
- Arc Adjustment Range: Full-circle 360°, Part-circle 40°–330°
- Pop-Up Height to Nozzle: 3.25"
- Body Height: 11-3/8"
- Inlet Size: 1-1/2" ACME Thread
- UV-Resistant Components: Yes
- Spike-Guard™ Solenoid Lightning Protection: 20,000V
- Multiple nozzle options for fine-tuned performance
Installation & Application:

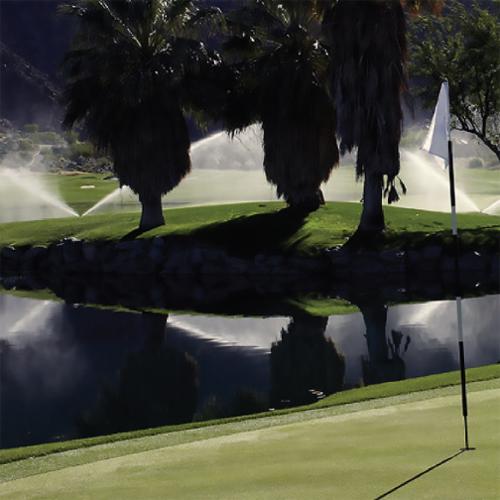

- Recommended Uses: Golf courses, large turf areas, athletic fields
- Installation Method: In-ground installation with Toro swing joint recommended
- Soil & Climate Suitability: Ideal for areas with available flow and pressure for wide radius irrigation
Compatibility & Optional Accessories:
- Replaces Toro models: 654, 655, 670, 684, 690 (with adapter 102-5011), 754, 784, 785, 884s, 885s, 886s, 854s, 855s, DT54, DT55
- Toro Golf Conversion Adapter Flange: 102-0950 (sold separately)
- Compatible with over 100 different inner and intermediate nozzles
