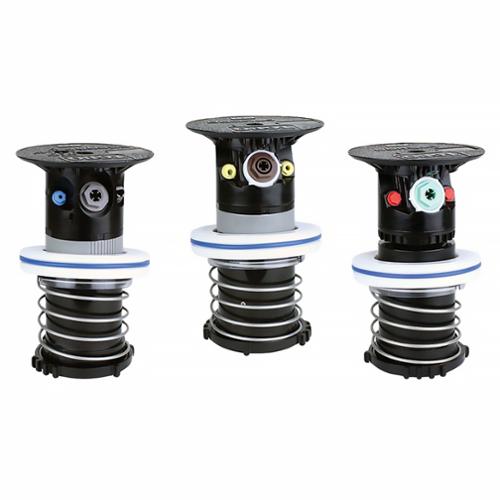

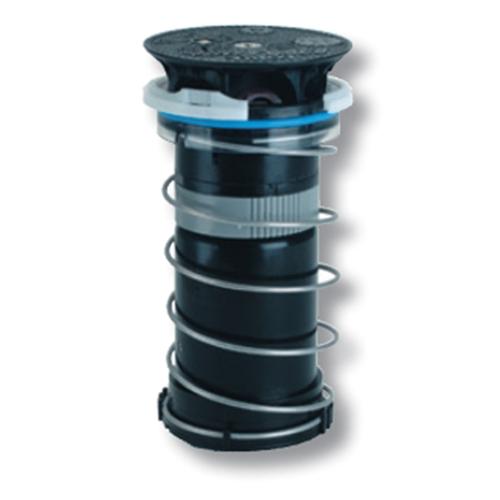

The Toro FLEX800™ 1" Conversion Assembly with small nozzle set offers an efficient, economical upgrade for existing Toro golf course irrigation systems. Designed to replace older models like the 734, 764, 765, 864S, 865S, 834S, 835S, DT34, and DT35, this flexible assembly provides exceptional water distribution with dual trajectory options of 30° or 7° and radius coverage between 46' and 80'. The industry's largest nozzle selection combined with TruJectory™ adjustment ensures maximum distribution uniformity and optimal adaptability to meet seasonal watering needs or water rationing mandates. Stainless steel valve seats and radius reduction screws enhance durability and fine-tune performance, while the ratcheting riser simplifies servicing without disassembly.
Key Features:
- Economically upgrades existing Toro systems without needing full replacements
- Dual trajectory settings: 30° for maximum distance, 7° for windy conditions
- Adjustable full-circle and part-circle (40°–330°) coverage
- Industry’s largest selection of high-performance nozzles for precise watering

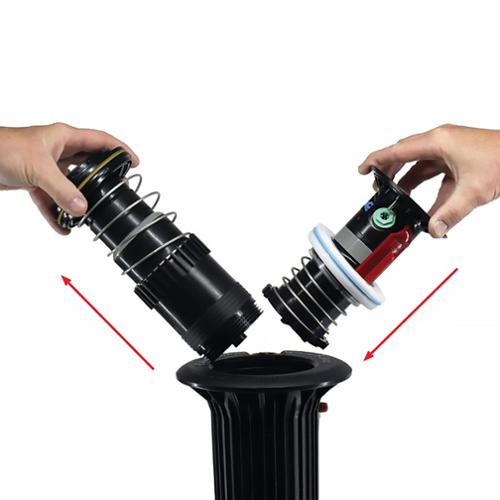

- Ratcheting riser and radius reduction screw for easy adjustments and maintenance
- Durable stainless steel valve seat resists rock and debris damage
Technical Specifications:
- Operating Pressure Range: 40–150 PSI
- Recommended Operating Pressure: 65–100 PSI
- Flow Rate: 15.5–37.0 GPM
- Spray Radius: 46'–80'
- Arc Adjustment Range: 40°–330°
- Low Angle Nozzle Trajectory: 7°
- Nozzle Trajectory Options: 7° and 30°
- Pop-Up Height: 3-1/4"
- Connection Size: 1" ACME
- Series: Flex800™
- UV-Resistant Components: Yes
Installation & Application:

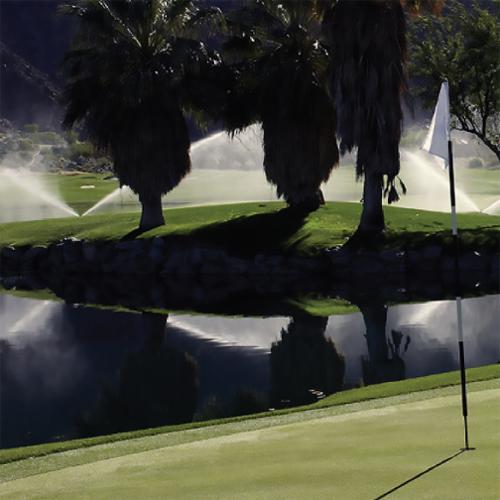

- Recommended Uses: Golf courses, sports fields, and commercial landscapes
- Installation Method: Buried in-ground installation
- Compatible with Toro FLEX800 series nozzles, Spike-Guard™ solenoids, and pilot valves
- Optional Accessories: Radius reduction screw for fine-tuning spray distance
Enhance your irrigation system’s efficiency with the Toro FLEX800 1" Conversion Assembly. Explore compatible Toro nozzles and accessories for even greater customization or contact our support team for expert recommendations.
