Sold Individually. Manufacturer Pack Size = 10.

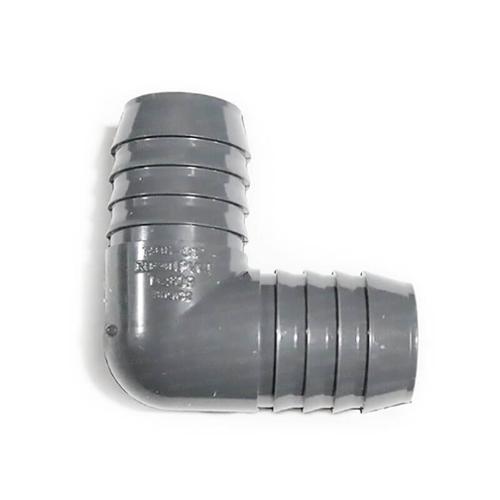

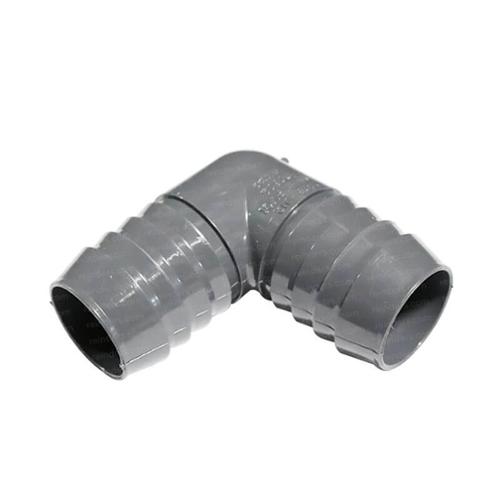

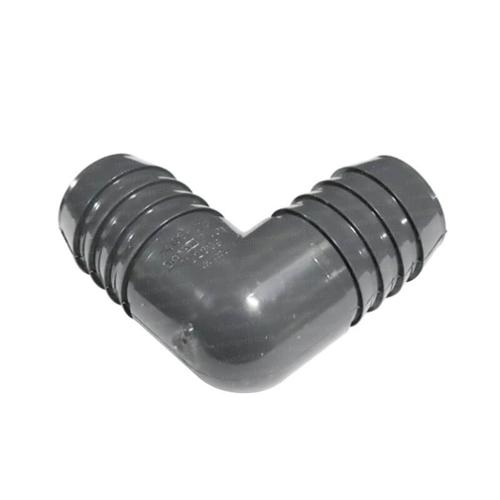

Spears® 1-1/4" PVC 90° Insert Elbow is a durable and corrosion-resistant fitting designed for use with polyethylene irrigation pipe. Ideal for residential and commercial irrigation systems, it provides a secure and reliable connection with ASTM-rated performance standards.
Key Features & Benefits:
- Injection molded from high-quality PVC for superior durability
- Corrosion-resistant and chemical-resistant for long-lasting performance
- Designed for use with ASTM D 2104 Schedule 40 or D 2239 SIDR polyethylene pipe
- Excellent grip with polyethylene materials due to rigid barbed insert design
- Tested and Certified by NSF International for potable water systems
Technical Specifications:
- Size: 1-1/4"
- Material: PVC
- Color: Gray
- Connection Type: Insert x Insert
- Manufactured to ASTM D 2609 standards
- Laying Length (G): 27/32"
- Overall Height (H): 2-1/4"
- Injection Molded for consistent performance
Installation & Application:
Recommended for residential and commercial irrigation systems using polyethylene pipe. Easily installed by inserting each end into compatible tubing and securing with clamps. Suitable for buried in-ground systems or above-ground setups where flexibility and corrosion resistance are required.
Compatibility & Optional Accessories:
- Compatible with polyethylene pipe per ASTM D 2104 and D 2239 standards
- Can be used with Spears® PVC Insert Fittings product line
Spears® 1-1/4" PVC 90° Insert Elbows provide a durable and reliable connection for polyethylene irrigation piping systems. Designed to deliver high performance under pressure, these elbows are ideal for residential, commercial, and agricultural irrigation applications where consistent water flow and corrosion resistance are critical.
Key Features:
- Manufactured from high-quality, chemical-resistant rigid PVC
- Meets ASTM D 2609 standard for insert fittings for polyethylene pipe
- Designed for use with ASTM D 2104 Schedule 40 or D 2239 SIDR PE pipe
- Provides tight, secure grip with barbed insert design
- Tested and certified by NSF International for potable water use
- Corrosion and chemical-resistant construction enhances long-term durability
- ±1/16" tolerance on overall fitting length and socket/thread hub OD
- ±1/32" tolerance on centerline-to-face for 90° elbows
Technical Specifications:
- Fitting Type: 90° Insert Elbow
- Connection: Insert x Insert (INS x INS)
- Material: High-quality rigid PVC
- Applicable Pipe Standards: ASTM D 2104, D 2239
- Insert Fitting Standard: ASTM D 2609
- NSF Certified for Potable Water: Yes
- Tolerance: ±1/16" overall, ±1/32" for 90° intersection centerline-to-face
Installation & Application:
- Recommended Uses: Residential, commercial, and agricultural irrigation systems
- Installation Method: Insert into polyethylene tubing with clamps
- Soil & Climate Suitability: Suitable for standard underground irrigation in various soil types
Compatibility & Accessories:
- Compatible with polyethylene pipe (SIDR and Schedule 40)
- Use with stainless steel hose clamps for secure connections
