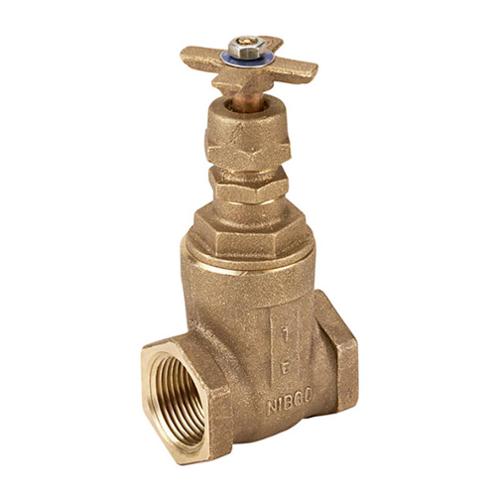

2-1/2" Domestic Bronze Gate Valve with Cross Handle
- The NIBCO® bronze non-rising stem gate valve is specifically designed for irrigation in-ground applications.
- It features a cross type operating handle used in conjunction with a remote operating wrench for in-ground use
- Features a screw-in bonnet for service where infrequent maintenance is required
- Female threaded ends allow for ease of insallation
- Non-rising stem
- Dezincification resistant
- Conforms to MSS SP-80
- Sizes range from 1/4" - 3"
125 PSI/8.6 Bar Saturated Steam to 353° F/178° C
200 PSI/13.8 Bar Non-Shock Cold Working Pressure
| Material List |
| Handwheel Nut |
300 Series Stainless Steel |
| Identification Plate |
Aluminum |
| Handwheel |
a. Malleable Iron ASTM A 47 (T-113)
b. Bronze (T-113-BHW)
c. Bronze Cross (T-113-K) |
| Stem |
Silicon Bronze ASTM B 371 Alloy C69400
or ASTM B 99 Alloy C65100 |
| Packing Nut |
Bronze ASTM B 62 or ASTM B 584
Alloy C84400 or Brass ASTM B 16 |
| Packing Gland |
Bronze ASTM B 62 or ASTM B 584
Alloy C84400 or Brass ASTM B 16 |
| Packing |
Aramid Fibres with Graphite |
| Stuffing Box |
Bronze ASTM B 62 |
| Bonnet |
Bronze ASTM B 62 |
| Body |
Bronze ASTM B 62 |
| Wedge |
Bronze ASTM B 62 |
