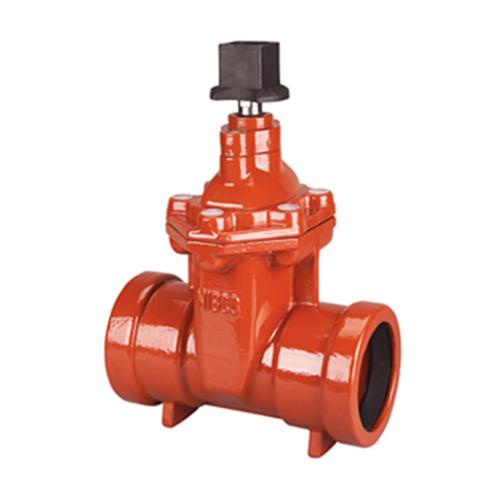

The NIBCO® 3" Push-On Resilient Wedge Gate Valve delivers full flow with minimal pressure drop, ideal for waterworks and irrigation services. Engineered for long-term reliability, it meets stringent industry standards for performance, pressure, and temperature handling.
Key Features:
- Fusion bonded epoxy coated cast iron body for superior corrosion resistance
- Certified lead-free by IAPMO R&T to NSF/ANSI 372
- Non-rising stem and resilient wedge for reliable sealing
- Bolted bonnet ensures durable, pressure-tight construction
- Push-on end connections allow quick and easy installation
- Meets AWWA C509 and C515 standards
Technical Specifications:
- Connection Type: IPS Push-On Ends
- Body Material: Cast Iron with Fusion Bonded Epoxy Coating
- Wedge Type: Resilient
- Bonnet: Bolted
- Stem: Non-Rising
- Working Pressure: 250 PSI (17.2 Bar) CWP
- Max Operating Temperature: 160°F (71°C)
- Certifications: NSF/ANSI 372 Lead-Free, AWWA C509/C515
