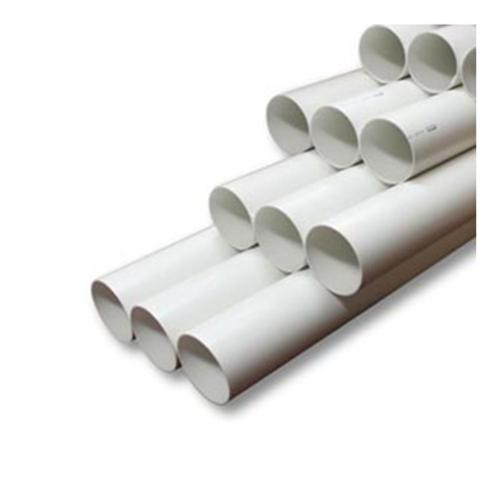

Cresline 1" PVC Pressure Pipe is a durable, high-impact solution ideal for irrigation systems, potable water lines, and other applications where corrosion resistance is essential. With dual-rated pressure capacity and NSF approval, this pipe meets demanding standards for residential, commercial, and agricultural use.
Key Features:
- Constructed from PVC 1120 for strength and longevity
- Rigid build offers excellent impact resistance and dimensional stability
- Approved by NSF for safe use with drinking water systems
- Versatile bell end design for solvent weld and gasket joints
- Dual pressure ratings provide application flexibility
Technical Specifications:
- Pipe Size: 1"
- Outer Diameter: 1.315"
- Minimum Wall Thickness: 0.063"
- Socket Depth: 2.375"
- Length: 20'
- Weight per 100’: 16.17 LB
- Material: PVC 1120 (Polyvinyl Chloride)
- Pressure Rating @ 73.4ºF: 200 PSI (SDR-21), up to 315 PSI (*SDR-13.5)
- Joint Type: Bell End (Solvent Weld & Gasket Compatible)
- Certifications: NSF Certified for Drinking Water
- Standards Met: ASTM D-2241
Installation & Applications:
- Installation Method: In-ground; compatible with solvent weld and gasket systems
- Recommended Uses: Potable water lines, irrigation systems, municipal water systems, agricultural piping
- Climate Suitability: Performs well in varying Midwest soil conditions and seasonal temperature changes
